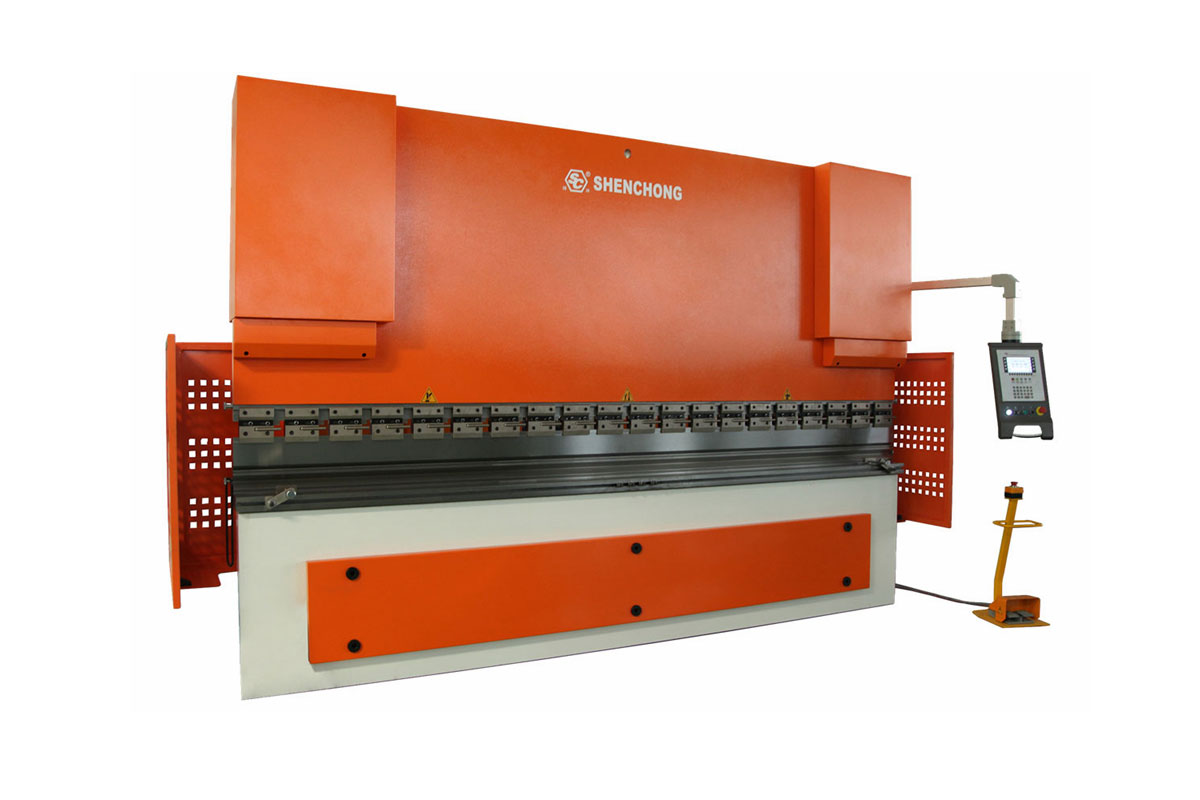

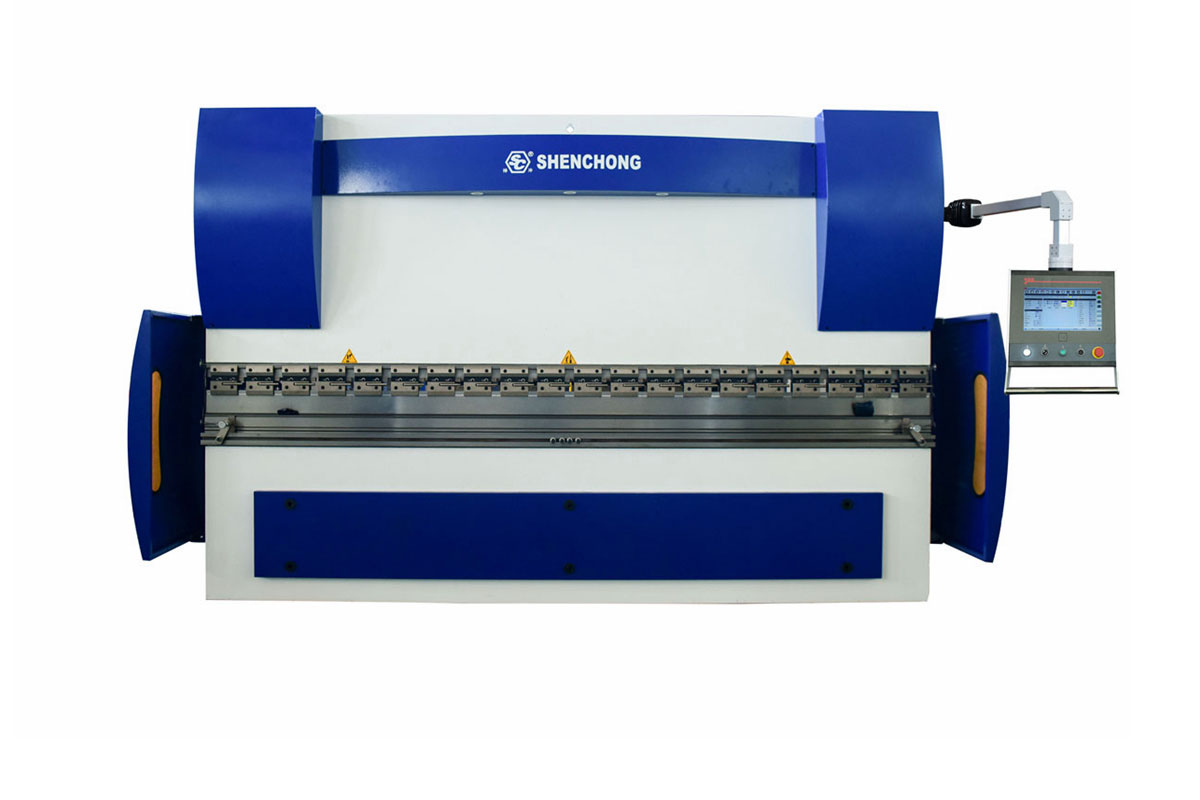

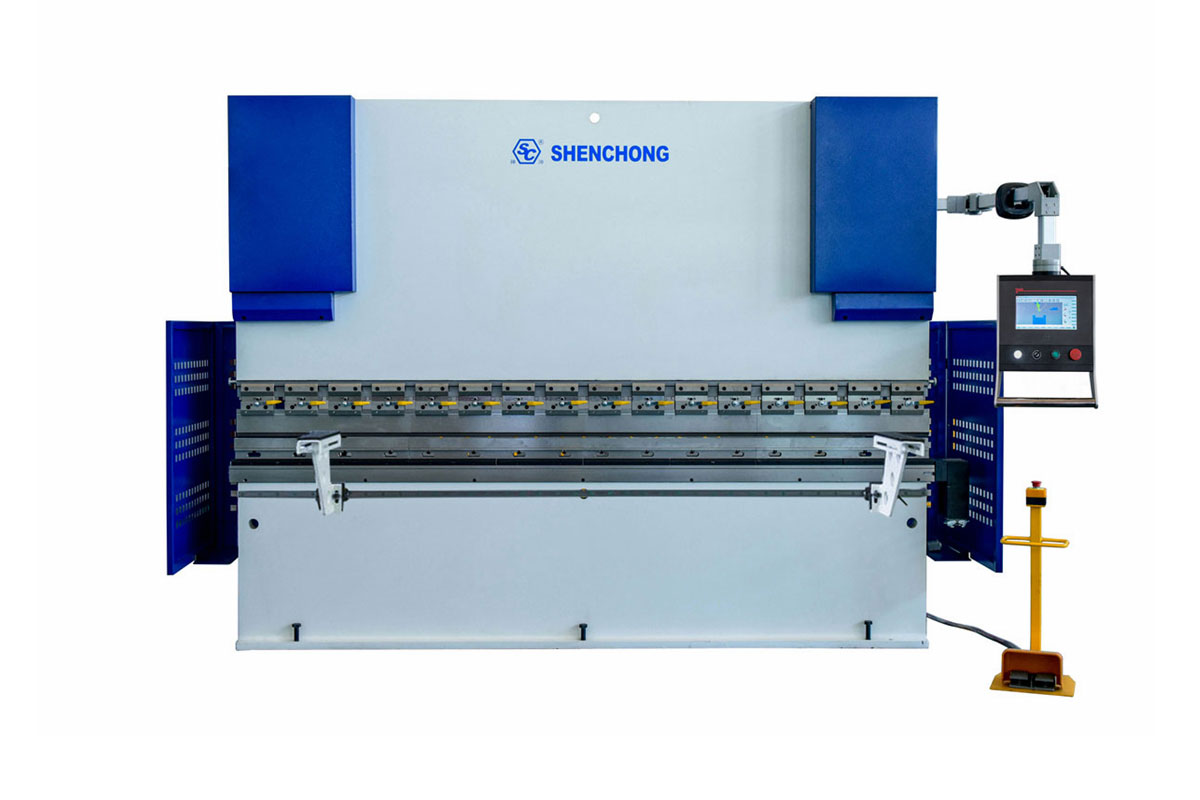

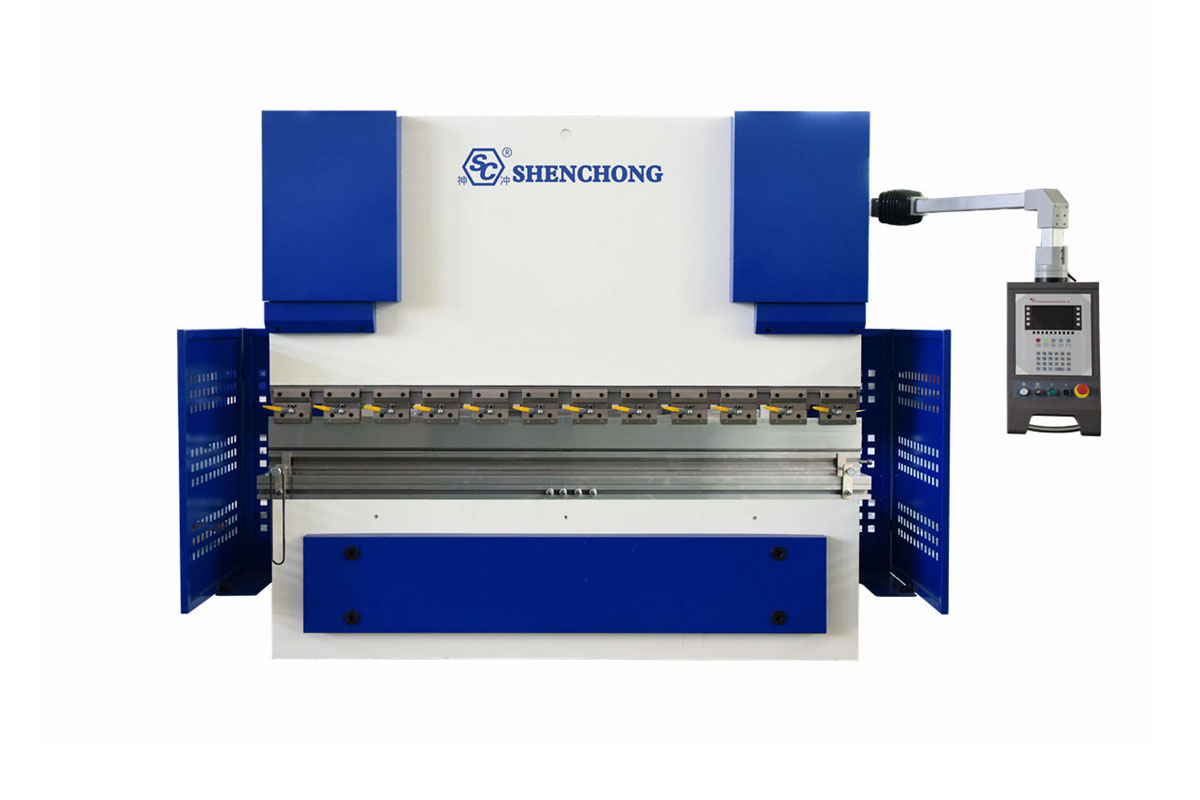

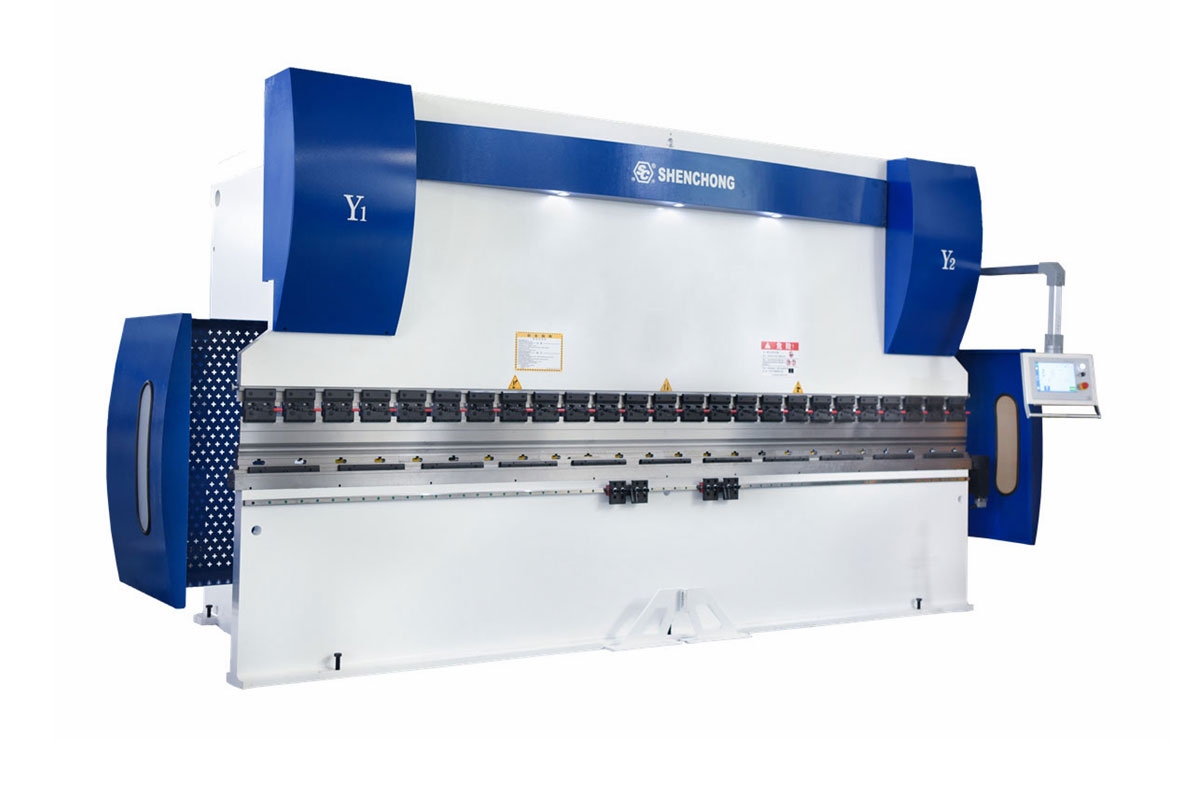

CNC数控电液同步折弯机

电液同步折弯机有良好的刚度和稳定性,消除应力;采用液压传动,操作平稳可靠;电液伺服系统,全闭环反馈控制同步;折弯机防喉口变形系统保证折弯精度。


神冲数控折弯机剪板机,金属板材加工机械

电液同步折弯机有良好的刚度和稳定性,消除应力;采用液压传动,操作平稳可靠;电液伺服系统,全闭环反馈控制同步;折弯机防喉口变形系统保证折弯精度。

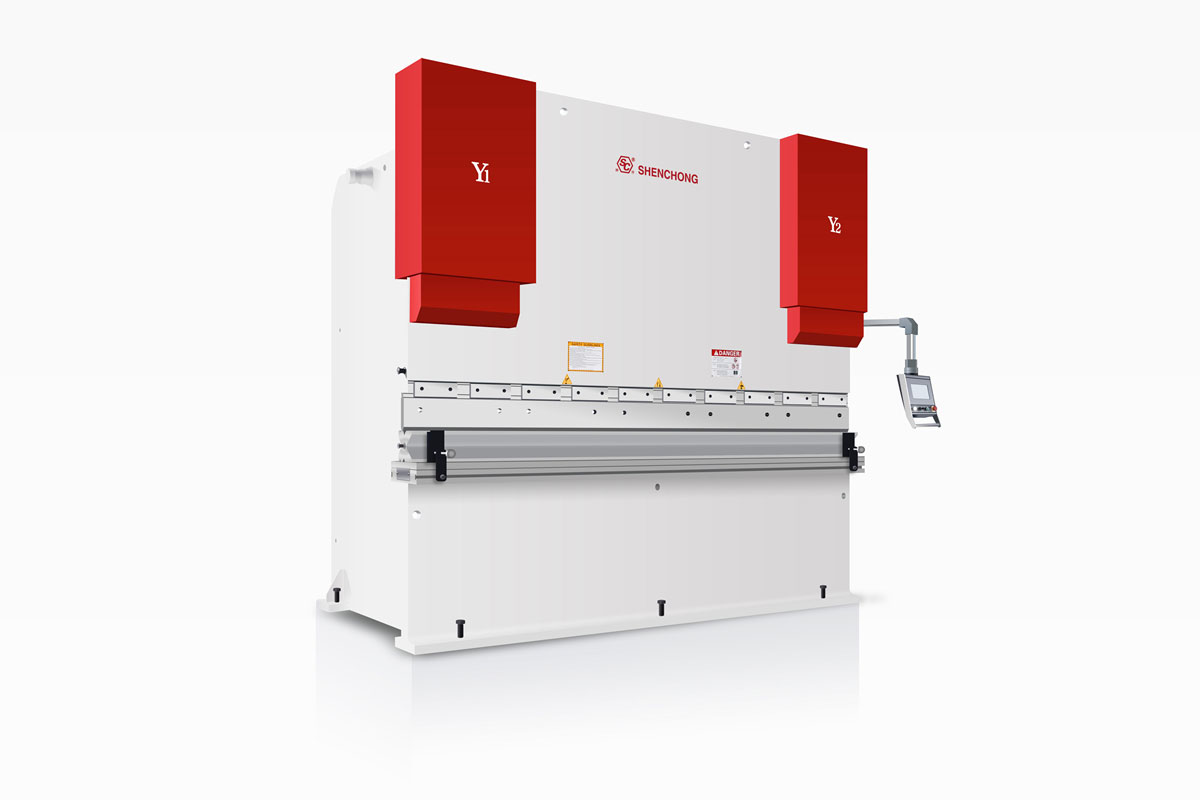

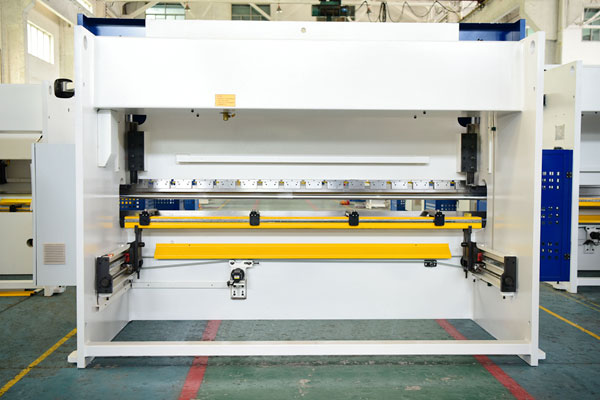

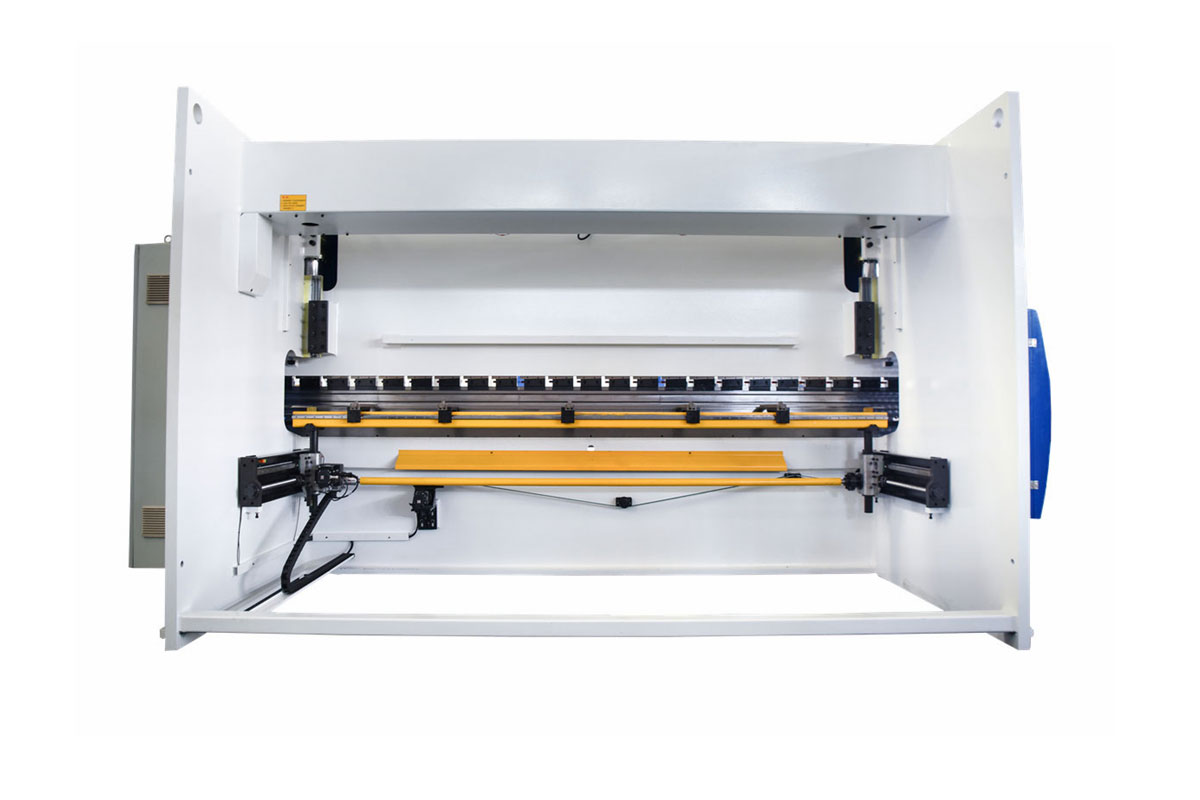

标准配置:(4+1)轴或(3+1)轴;Y1,Y2轴控制两侧油缸数值轴;X控制后挡料前后移动;R控制后挡规上下移动,V为油缸补偿。

神冲数控折弯机剪板机,金属板材加工机械

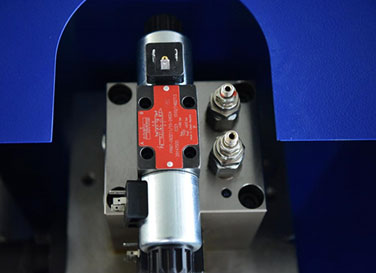

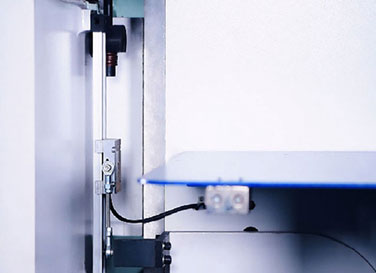

磁栅尺、电脑控制系统、比例阀、油缸控制系统组成闭环。抗干扰性强,稳定性强

神冲数控折弯机剪板机,金属板材加工机械

快夹可用于上模补偿


标签:   电液折弯机 数控折弯机

标配及选配


标签:   电液折弯机 数控折弯机
型号额定压力(kN)工作台长度 (mm)立柱间距(mm)喉口深度 (mm)行程 (mm)开启高度 (mm)主电机功率 (Kw)外形尺寸 LxWxH (mm)
40T/13004001300100025016040041830*1430*2215
40T/16004001600130025016040042130*1430*2215
40T/20004002000150025016040042530*1430*2215
40T/25004002500200025016040043030*1430*2215
63T/2000630200015003201604005.52540*1640*2225
63T/2500630250020003201604005.53040*1640*2225
63T/3200630320026603201604005.53710x1650x2450
80T/2500800250020004001604107.53050*1650*2305
80T/3200800320026604001604107.53710*1650*2405
100T/25001000250020004002004507.53060*1690*2425
100T/32001000320026604002004507.53720*1690*2475
100T/40001000400032004002004507.54500*1690*2545
125T/25001250250020004002004507.53080*1760*2500
125T/32001250320026604002004507.53740*1760*2535
125T/40001250400032004002004507.54520*1760*2610
125T/60001250600048004002004507.56100*1500*2895
160T/2500160025002000400200470113100*1830*2520
160T/3200160032002660400200470113760*1830*2620
160T/4000160040003200400200470114540*1830*2720
160T/6000160060004800400200470116100*1570*3000
200T/3200200032002660400200470113760*1880*2670
200T/4000200040003200400200470114540*1880*2770
200T/6000200060004800400200470116080x1950x2900
250T/3200250032002660400250490153780*1980*2860
250T/4000250040003200400250490154560x1980x2960
250T/5000250050004000400250490155080x2100x3250
250T/6000250060004800400250490156080x2200x3400
300T/3200300032002660400250500223800*2080*3090
300T/4000300040003200400250500224580*2080*3090
300T/5000300050004000400250500225100x2200x3300
300T/6000300060004800400250500226600*2250*3500
400T/4000400040003200400300605304580*2460*3600
400T/5000400050004000400300605305600*2460*3750
400T/6000400060004800400300605306200x2650x4000
500T/4000500040003200600300615374200x2800x4100
500T/5000500050004000600300615375200x2800x4200
500T/6000500060004800600300615376200x2800x4300
600T/5000600050004000600300650375200x3000x4400
600T/6000600060004800600300650376200x3000x5400
800T/5000800050004000700350710555200*3500*5600
800T/6000800060004800700350710556200*3500*5800
1000T/60001000050004800700350730556200*4100*6900
